Features

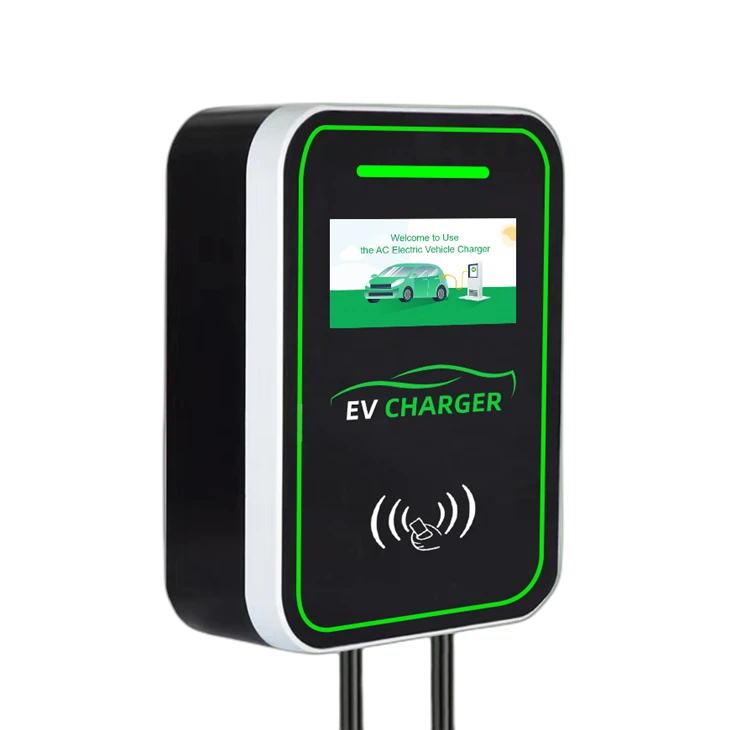

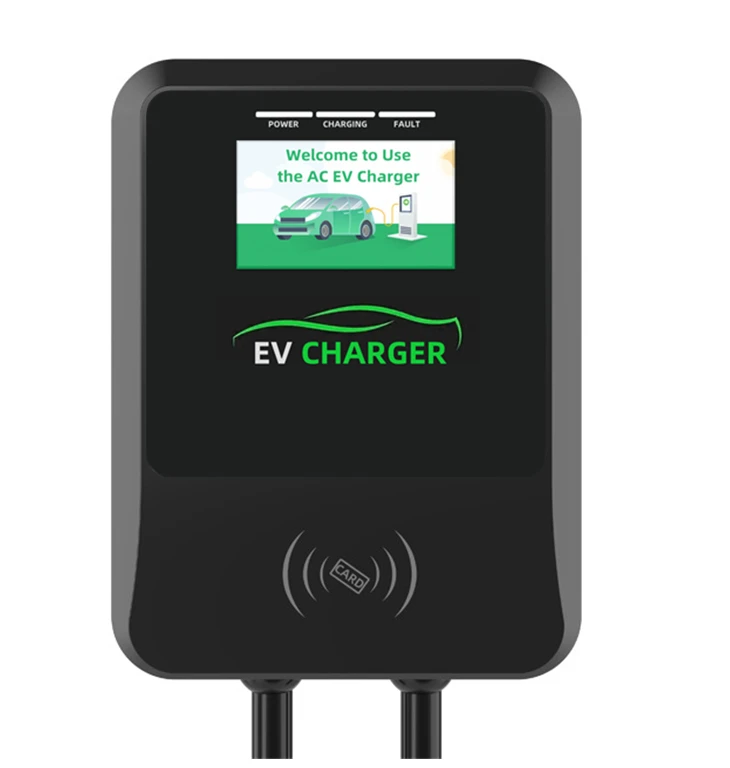

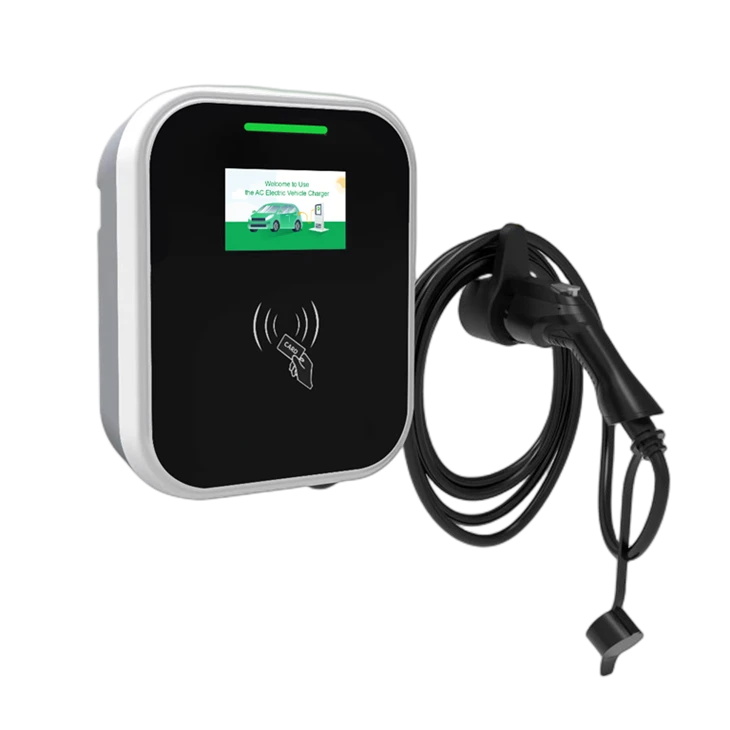

This 7KW/11KW/22KW EV charger adopted a unique installation design, which makes it super easy for people to install and maintain a charging infrastructure.

Users just need to hang the charger on the backplate to complete the installation, which is convenient and fast to avoid expensive installation costs.

Equipment management

Real-time monitoring

Charging record

Customer terminal

Load-balance technology

Commercial operation platform

Operator management

Veihcle management

Safe and mutiple payment

Charger Parameters

7kW/32A 11kW/ 16A 22kW/32A	K016	Power	AC 7KW/11KW/22kW
		Rated Voltage	AC 220V/380V±20%
		Frequency	50-60Hz
		Output Power	7KW/11KW/22kW
		Output Current	32/16/32A
		Cable Length	5m
		Charging Model	RFID/Plug and play
		Connector Type	Type 1,Type 2
		Protection Level	IP54
		Operating Temperature	~-30C to +60C
		Product size	368256.5130mm
		Package size	460390160mm
		Net Weight	4KG
		Gross Weigh	4.5KG
