Product Features
Maintenance method: The system adopts an open cover maintenance method and is reliably installed on the wall Harmonic current ≤ 3% (under rated operating conditions) Stable current accuracy ≤ ± 0.5% refer to NB/T33001-2018 Voltage stabilization accuracy ≤ ± 0.5% refer to NB/T33001-2018 Ripple coefficient ≤ ± 0.2% refer to NB/T33001-2018 Current sharing ≤ ± 3% 10%~100% load range On the AC or DC side, the peak value of the impulse current when the switch is turned on should be limited to 10% of the maximum rated current of the charger (station) Sound noise ≤ 65dB (A) (at an ambient temperature of 25 ºC under rated operating conditions) The temperature rise shall comply with the requirements of GB18487-2001 and NB/T33001-2010 standards, and the temperature rise of the charging interface shall comply with the provisions of the national standard GB/T234.1-2014 DC output voltage Range 250Vdc~750Vdc, error ± 1Vdc Output DC current, single gun maximum output current ≤ 50A DC screen voltage drop ≤ 400mV (ambient temperature is 25 ºC)
Charger Parameters
|

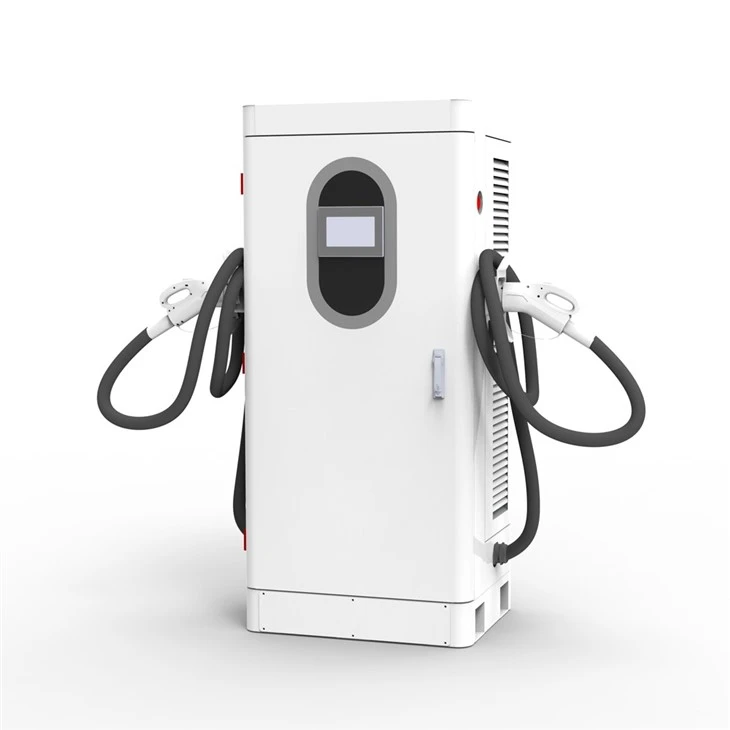

DC-50KW single or double guns |
K011A |
Power |
DC 50KW DC Charger |
|
Input Voltage |
AC(380V±20% 3 Phase - |
||
|
Rated output voltage |
DC150-1000V |
||
|
Frequency |
50-60Hz |
||
|
Communication Protocol |
OCPP 1.6J |
||
|
HMI |
7- Inch touch screen |
||
|
Cable Length |
5m |
||
|
Network Connection |
4G/Ethernet/RFID etc |
||
|
Connector Type |
CCS/CHAdeMO/GBT |
||
|
Communication Protocol |
OCPP 1.6J |
||
|
Protection Level |
IP54 |
||
|
Operating Temperature |
~-30C to +60C |
||
|
Product size |
720*557*1700 |
||
|
Package size |
770*610*1850 |
||
|
Net weight |
170KG |
||
|
Gross weigh |
180KG |
Safety Protections
Charger Available Brand
Connection method between charging station CS and charging station management system CSMS
Commercial charging stations: There are two connection methods for charging stations (CS), both of which are based on their own charging station management system (CSMS) and provide a unified solution for communication between charging stations and charging station management systems through the OCPP protocol (protocol versions 1.6J, 1.6 or 2.0).
1) Wired connection: Ethernet
Each charging station (CS) is connected to the charging station management center (CSMS) via fiber optic Ethernet connection
Advantages: Stable connection and large data transmission volume
Disadvantages: cumbersome wiring, large workload, and high cost
2) Wireless connection: 4G (WiFi means 4G)
Each charging station (CS) comes with a 4G card module, connected to the charging station management center (CSMS)
Advantages: No wiring required, simple operation, saving a lot of costs
Disadvantage: In some places, the 4G signal is unstable and may disconnect. Using mobile data also requires payment of internal operator data fees
Please note that the protocol for foreign 4G cards is different from that for domestic ones. If the customer requires a 4G connection method, please send a local 4G traffic card to us. We need to debug it before shipping. In addition, in some countries, the 4G network is unstable, and it is necessary to first confirm with the customer whether there are charging stations connected to 4G in China, and the effectiveness of their use.
Note: Some functions of OCPP are as follows:
Local and remote initiated transactions
Authorize charging sessions
Status report, including heartbeat data
Support booking for charging
Support firmware upgrades
Support reporting diagnostic information
Support setting the availability of charging points
Support remote reset
Support remote unlocking of connectors
