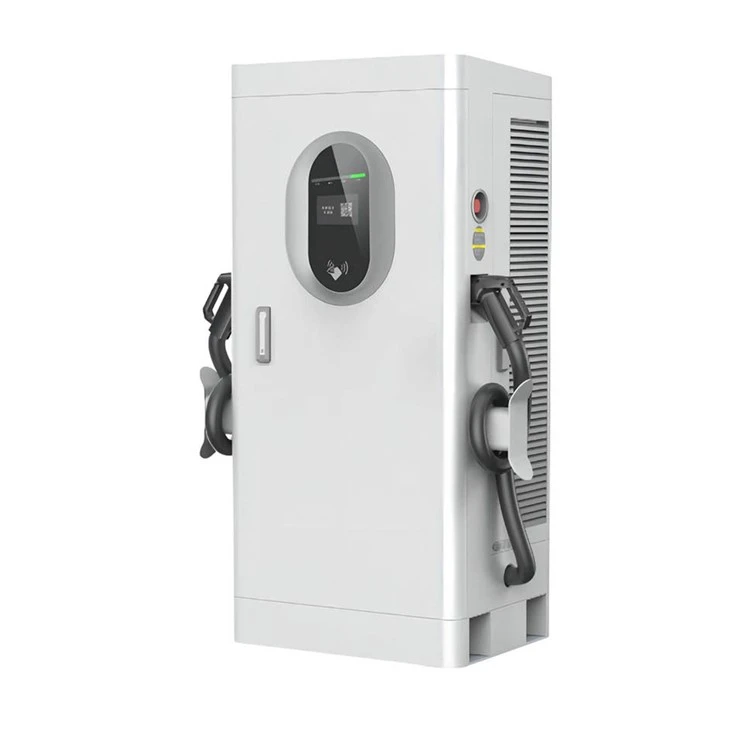

240KW Model 4 Charging Station

The 240KW Model 4 Charging Station is a high-powered electric vehicle charging station designed for rapid charging. With a substantial power output of 240 kilowatts, this charging station significantly reduces the charging time for electric vehicles, making it suitable for commercial applications and locations where quick turnarounds are essential.

Product Features

The 240KW Model 4 Charging Station fit for EU standard countries.

Parameters

DC-240KW Super Ultra Charging	K012	Power	DC 240KW Fast Charging
		Input Voltage	AC380V±20% 3 Phase
		Rated output voltage	DC150-1000V
		Frequency	50±20%Hz
		Current	0-250A
		HMI	7- Inch touch screen
		Cable Length	5m(Option)
		Network Connection	4G/Ethernet/RFID etc
		Connector Type	CCS/CHAdeMO/GBT/CCS2
		Communication Protocol	OCPP 1.6J
		Protection Level	IP54
		Operating Temperature	~-30C to +60C
		Product size	7205571700
		Package size	7706101850
		Net weight	370KG
		Gross weigh	380KG
