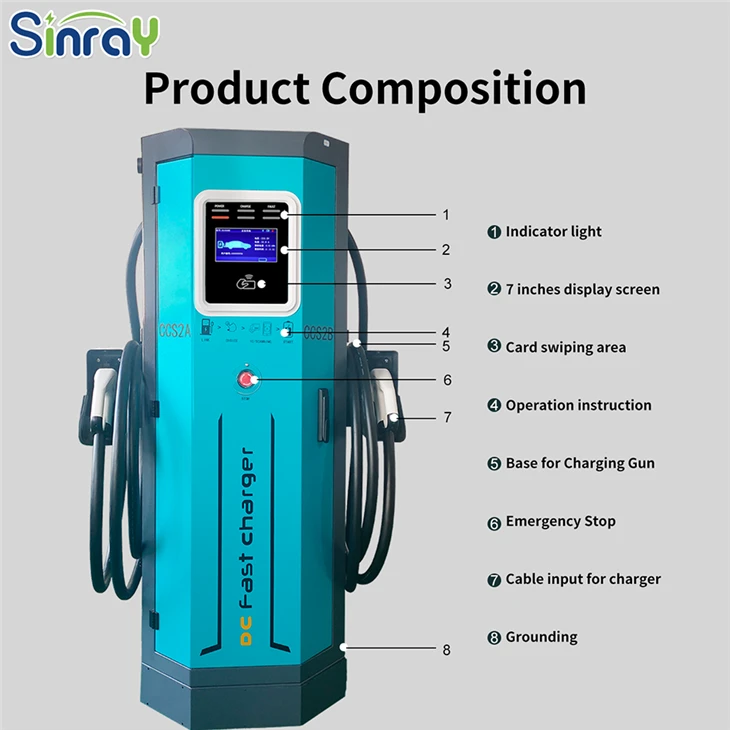

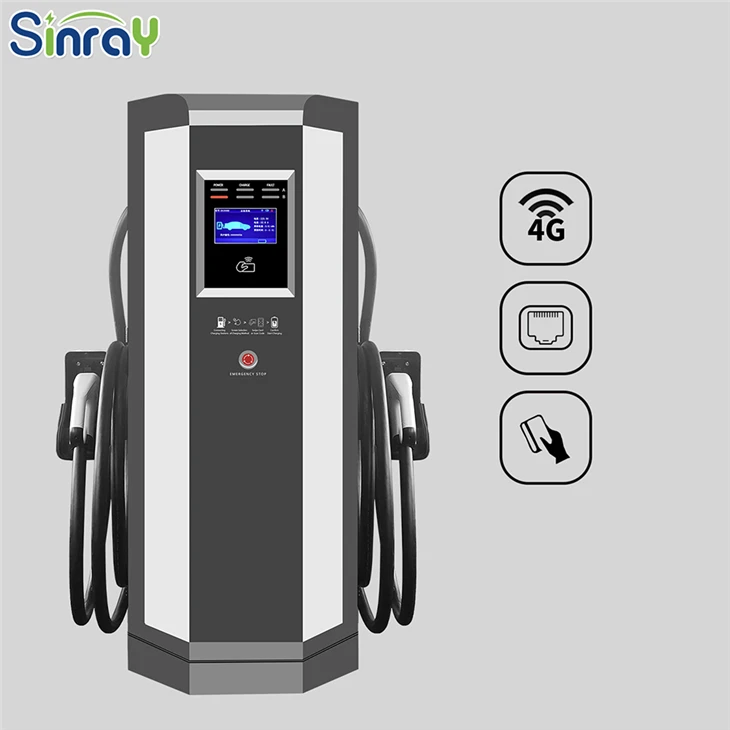

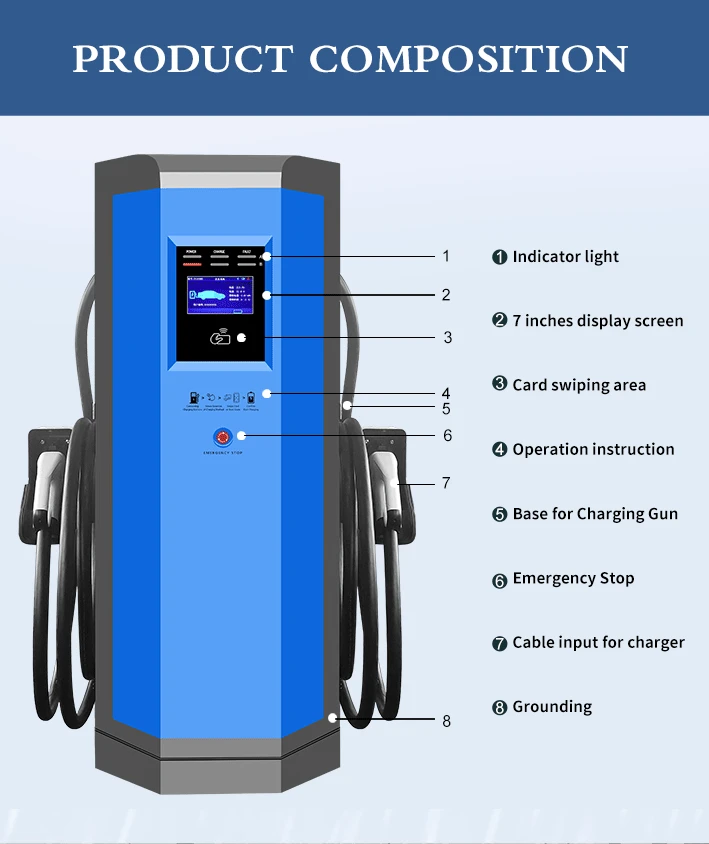

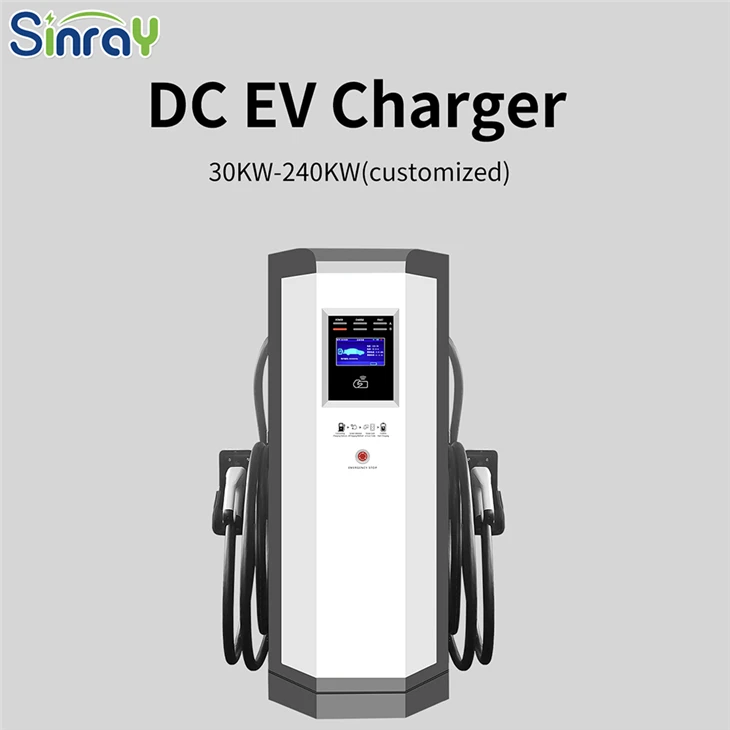

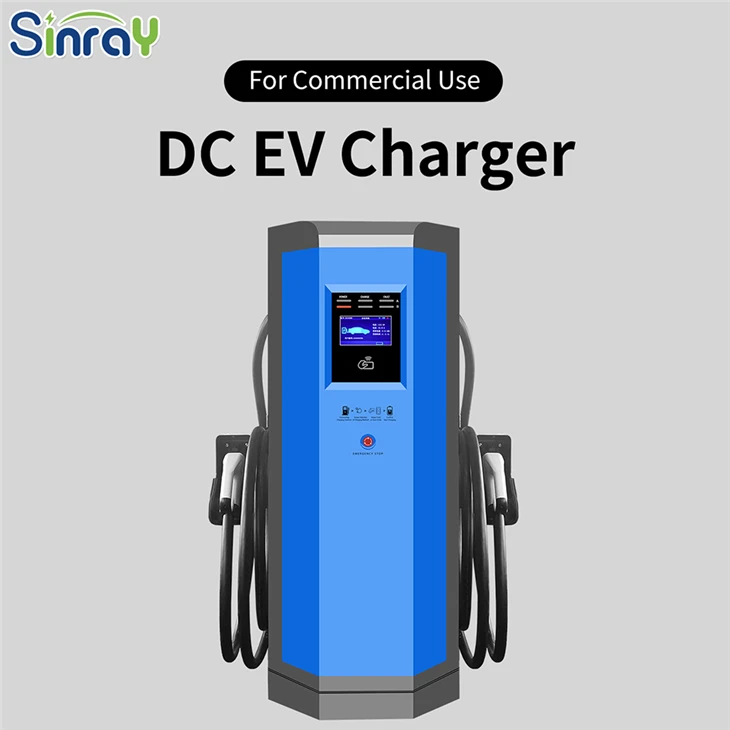

Model 4 Fast Charging Station

There are 8 conventional colors to choose from. Different colors can also be customized according to guests' requirements.

The power size can also be customized according to the guests' requirements. Options range from 40KW to 240KW to meet the needs of different countries and regions.

Eight safety protection measures for electric vehicle charging station.

Overvoltage protection

Prevent excessive input voltage from causing damage to the charging pile and the vehicle battery. For example, when the grid voltage rises abnormally, the charging pile will automatically cut off the power supply to protect the equipment and the battery.

Overcurrent protection

When the charging current exceeds the set safety value, the charging pile will immediately stop charging to avoid dangers such as overheating of the wires and short circuits. For instance, if a short-circuit fault occurs during the charging process, the overcurrent protection device will respond quickly.

Leakage protection

When a leakage is detected, the power supply is quickly cut off to ensure the safety of personnel and equipment. When the charging pile shell is electrified or there is leakage in the internal circuit, the leakage protection device will act in time.

Lightning protection

Install lightning arresters and other equipment to reduce the damage to the charging pile caused by lightning. During thunderstorms, prevent lightning waves from invading the charging pile and causing faults.

Temperature protection

Monitor the temperature inside the charging pile and at the charging interface. Once the temperature is too high, charging is automatically suspended. For example, when the temperature rises due to hot weather or continuous charging, cooling or stopping charging operations are initiated.

Short circuit protection

Quickly detect and cut off the short-circuit current to prevent fires and equipment damage. For example, when a short circuit occurs in the line, the short-circuit protection takes effect quickly.

Dust and water protection

Have a certain dust and water protection level to ensure normal operation in harsh environments. For example, IP54 protection can prevent dust from entering and rainwater from splashing.

Emergency stop button

In case of an emergency, the operator can press the emergency stop button to immediately stop the charging process. For example, it is used when abnormal smoke, fire, and other emergency situations are discovered.

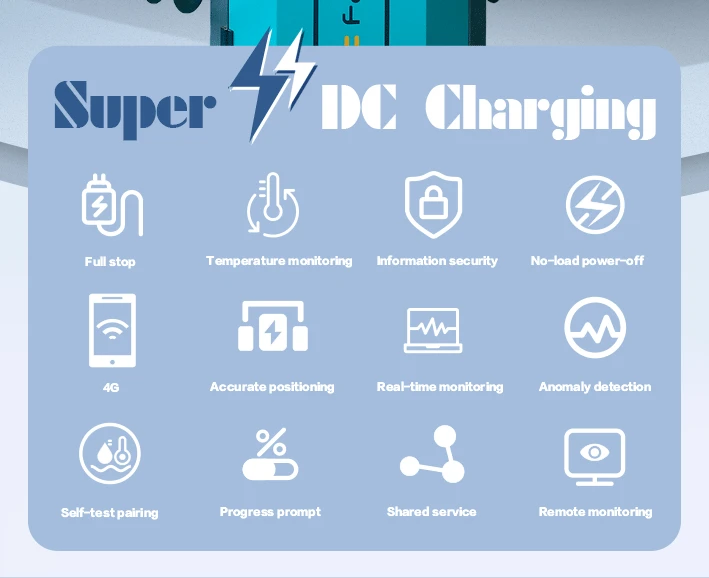

Through the charger APP or operator APP, you can view the operating status and geographical location of the charging pile, and monitor the charging situation and health status of the charging pile in real time.

he warranty period lasts for up to three years, the software maintenance is free for life. After the warranty period, only the cost of accessories repair is charged, leaving you with no worries.



Car Fast Charger



DC Fast Charging Stations

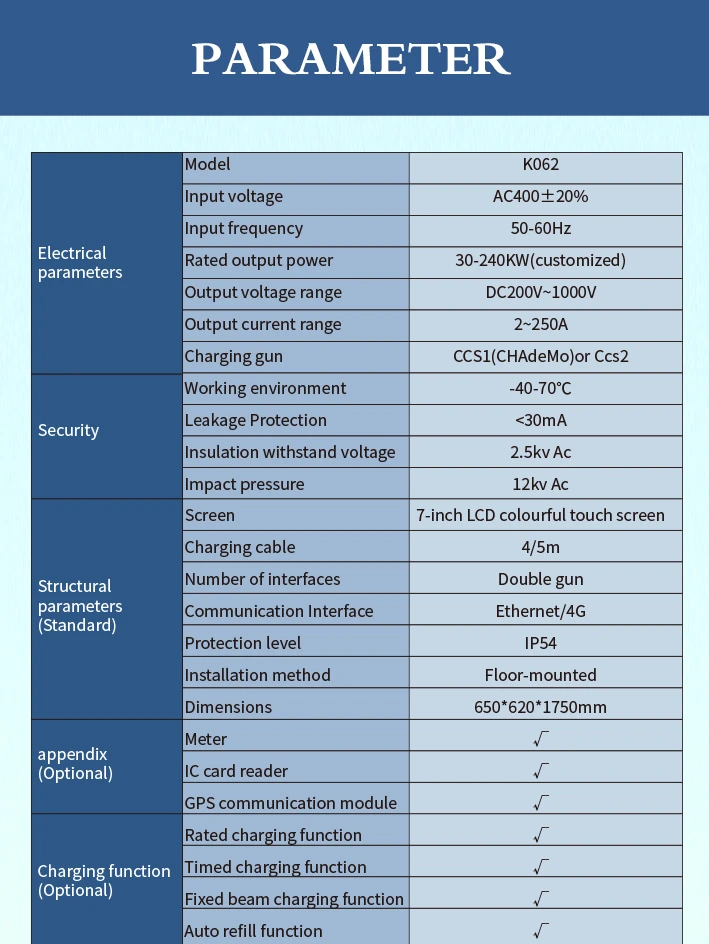

Parameter Of Quick Charging Stations

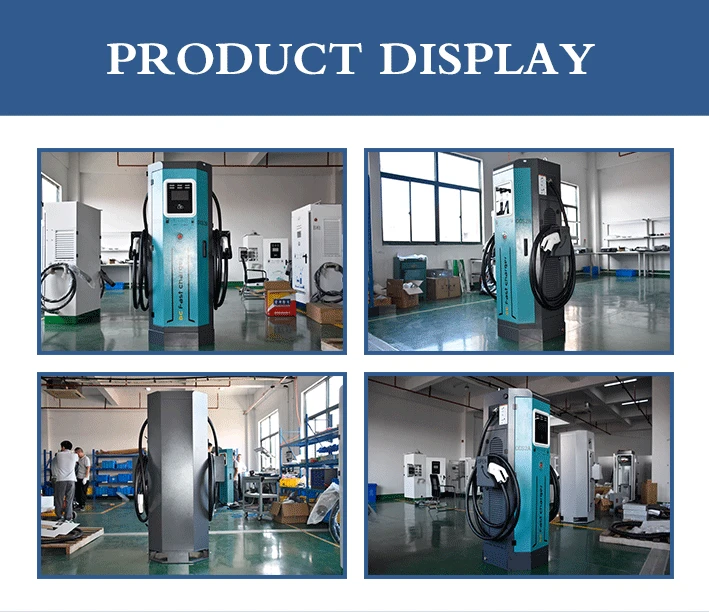

Fast Charging EV Station Pictures

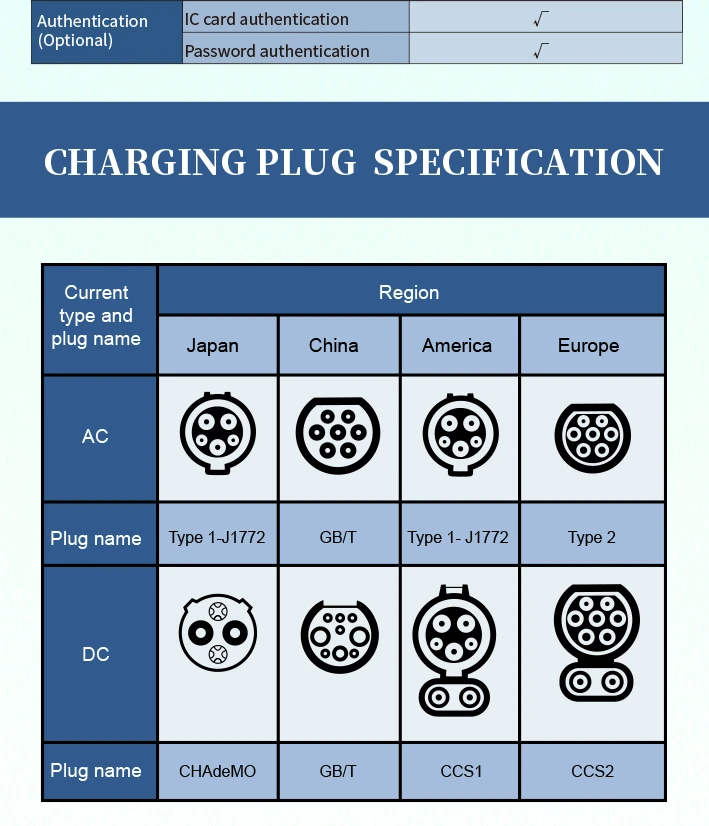

Connector Type

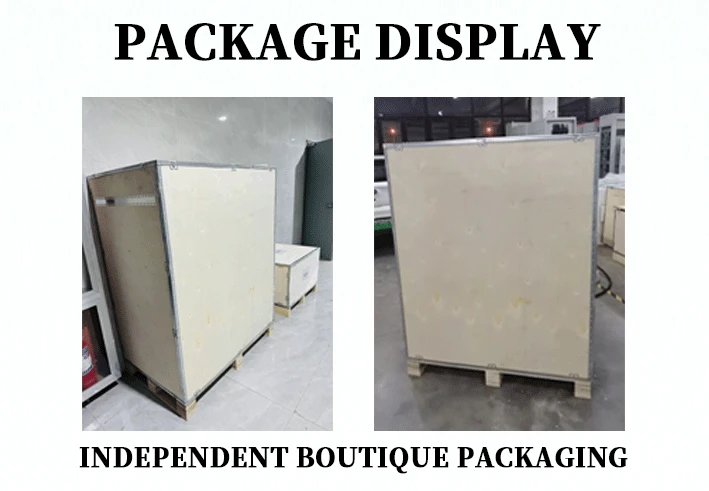

DC Charger Station Packing Case

Sinray has production experience of up to 100,000 AC and 5,000 DC electric vehicle charging piles in China. The export proportion exceeds 60%, and it has become a medium and large-scale manufacturer in China, with a complete supply chain channel and obvious cost advantages. The quality is also second to none in the same industry, and the warranty period is one year longer than that of its peers. Based on the business philosophy of small profits but quick turnover, we supply charging piles to more than 20 countries around the world and have a very good customer reputation.
