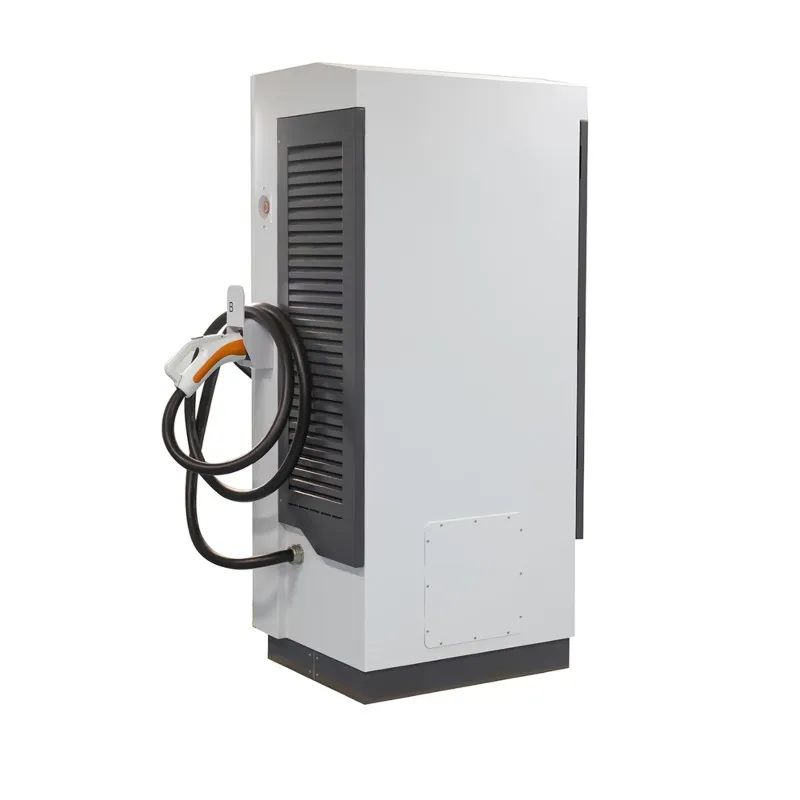

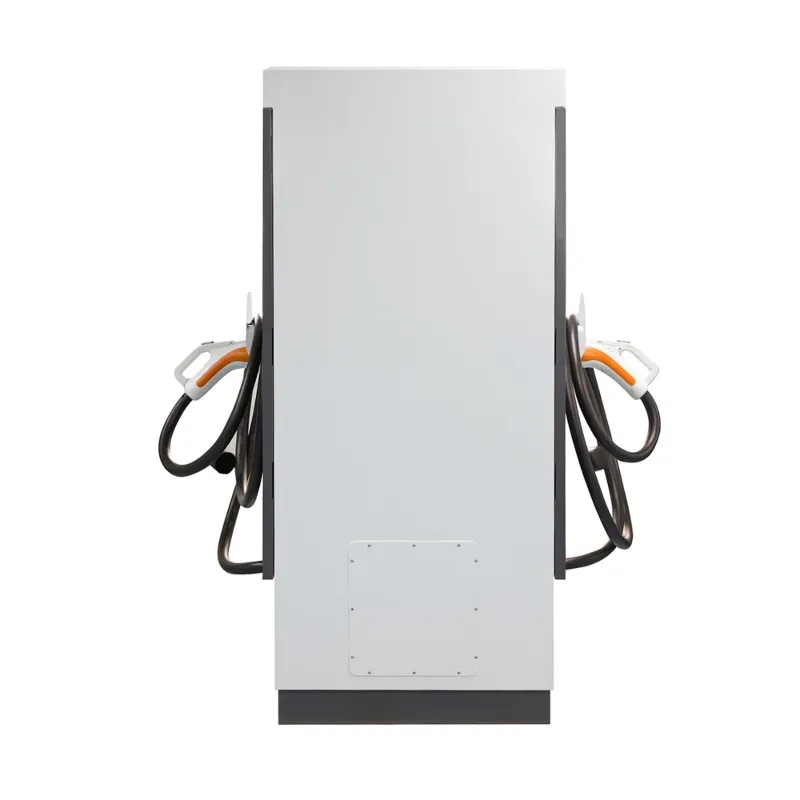

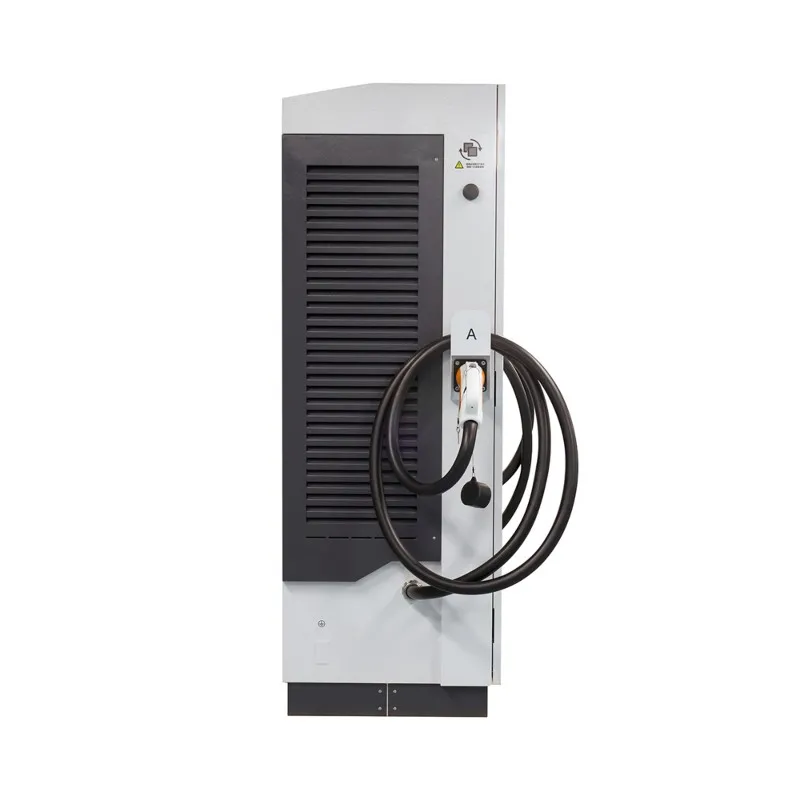

This electric car charger features core components that are either independently developed by our team or sourced from top international brands such as Infineon and TI. With a power conversion efficiency of over 95%, it not only effectively reduces energy loss but also achieves an ultra-long service life and extremely low failure rate, significantly cutting down on post-operation maintenance costs and downtime losses for charging stations.
Whether it's for supermarkets, highway service areas, logistics parks, or public charging stations, this charger operates stably and adapts seamlessly to the charging needs of various scenarios.
Main Parameter
| S/N | Technical indicators | 180kw | 240kw | 320kw |
| 1 | Rated power | 180kw | 240kw | 320kw |
| 2 | Maximum output current of the single gun |
250A | 250A | 250A |
| 3 | Shell material | Metal | ||
| 4 | Equipment Dimensions | 810x630x1800mm | ||
| 5 | Display mode | 7-inch touch screen | ||
| 6 | Networking method | Ethernet/4G(optional) | ||
| 7 | Charging mode | Automatic charging,by time,by battery and by amount |
||
| 8 | Start Method | Start by swiping cards/start by scanning codes. |
||
| 9 | Network background | Support YKC,evking,Dake Cloud and other platforms |
||
| 10 | Protection function | short circuit,overheating,overcurrent,leakage, overvoltage and undervoltage,etc. |
||
| 11 | Input voltage | AC380V±20% | ||
| 12 | Charging mode | AB Full-power charge | ||
| 13 | Input frequency | 50Hz±10% | ||
| 14 | Number of electric guns | Double gun | ||
| 15 | Length of gun line | 4 meters as the standard(optional) | ||
| 16 | Output voltage range | 50-1000Vdc | ||
| 17 | Output constant power range |
300-1000Vdc | ||
| 18 | Stabilized voltage precision |
≤±0.5% | ||
| 19 | Precision of steady current |
≤±1% | ||
| 20 | Full-load efficiency | ≥95% | ||
| 21 | Noise | ≤65dB | ||
| 22 | Insulation resistance | >20MR | ||
| 23 | Protection level | IP54 | ||
| 24 | Operational environment | Indoor or outdoor | ||
| 25 | Cooling mode | Air cooling | ||
| 26 | Operating temperature | -20℃~+50℃ | ||
| 27 | Storage Temperature | -40℃~+70℃ | ||
| 28 | Relative humidity | 5%～95% | ||
| 29 | Altitude | <2000m | ||
| 30 | Installation method | Grounded | ||
Product Advantages
Our EV charging machine has passed rigorous environmental testing and features an IP54 or higher protection rating. It can easily withstand harsh working conditions such as high and low temperatures, salt spray, and humidity, and is fully compatible with all types of outdoor charging station scenarios without the need for additional protective facilities.
The equipment supports 24/7 uninterrupted stable operation, significantly increasing the operational hours of charging stations and their charging service capacity, while reducing revenue losses caused by equipment downtime. Its continuous operational capability effectively lowers maintenance costs and enhances market competitiveness.
About Us
As a factory specializing in EV charging equipment, we offer a full-process one-stop service: from pre-project site survey and customized solution design, to equipment installation and commissioning, and further to post-operation training, 24/7 round-the-clock customer support, and sufficient spare parts supply-all with dedicated personnel following up throughout the entire process.
We provide a one-stop solution for all your needs from project implementation to operation and maintenance, significantly reducing communication and time costs, allowing you to focus on expanding your market without any worries.
