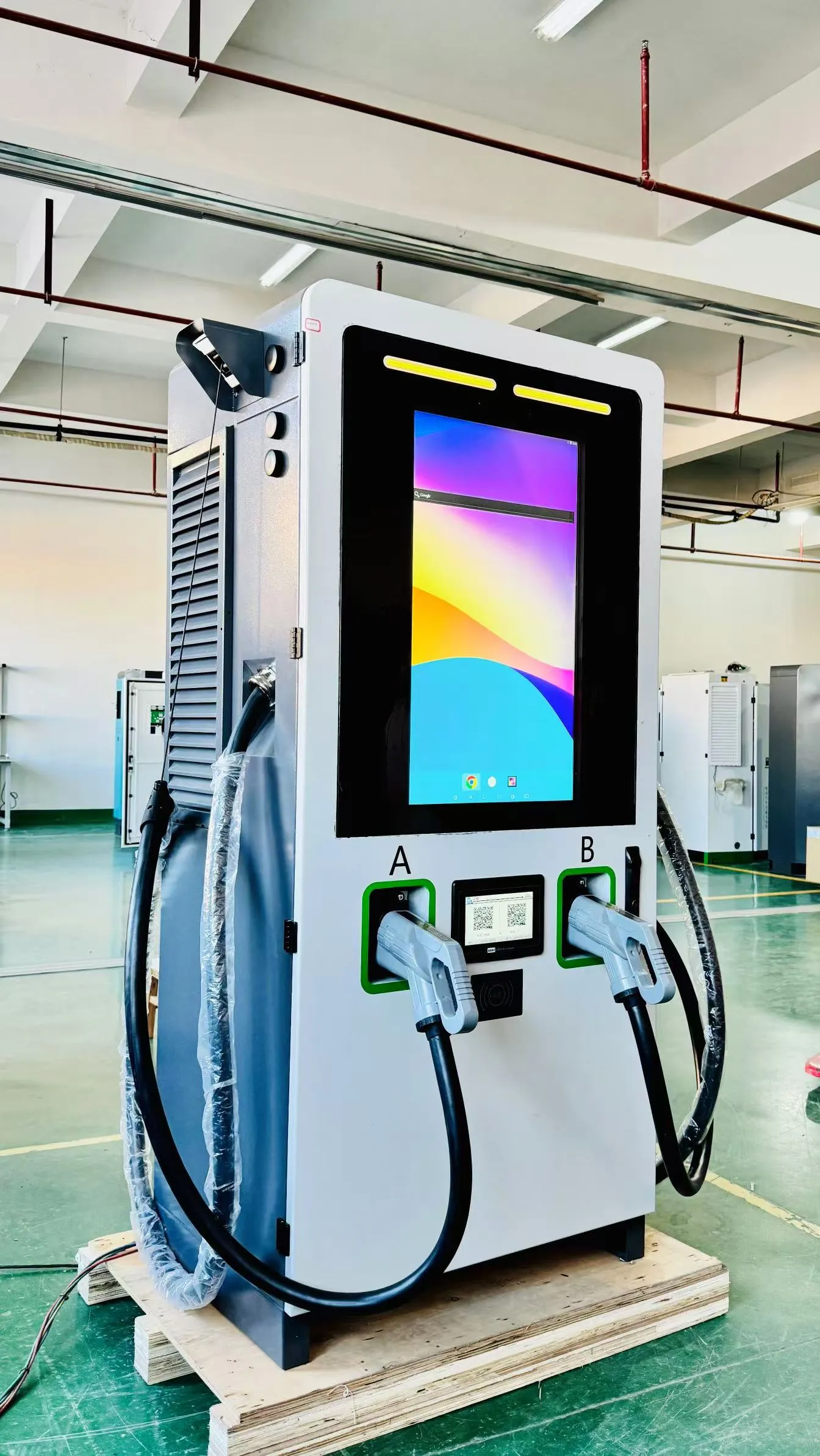

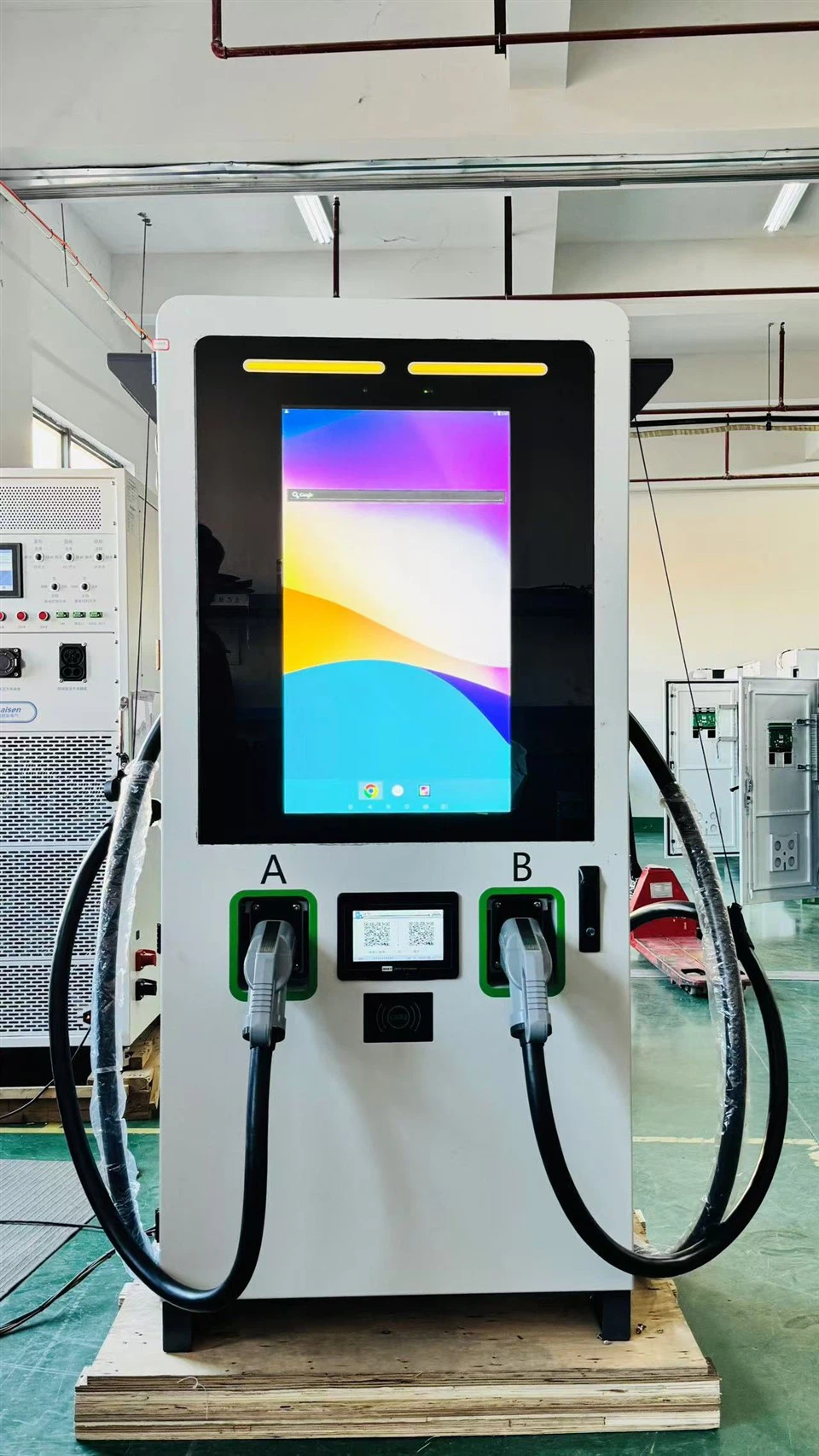

As a factory specializing in the R&D and production of DC EV chargers, our 32-inch screen commercial DC fast charger is the top choice for expanding the fast-charging market. Certified by CE and supporting the OCPP protocol, it boasts full compliance and industry compatibility, enabling seamless integration with various charging station management systems.
Main Parameter
| Model | KY-DC 07WD |
KY-DC-15WD | KY-DC 20WD |
KY-DC 30WD |
KY-DC 40WD |
| Output Power | 7KW | 15KW | 20KW | 30KW | 40KW |
| Output Current | 20A | 37A | 60A | 100A | 133A |
| Output Voltage | 200-750V(200-1000V optional) | ||||
| Input.Connection | L+N+PE | 3P+N+PE | |||
| Input Current | 32A | 25A | 32A | 45A | 64A |
| Input voltage | 90-265V | 260-475V | |||
| Frequency | 50/60Hz | ||||
| Power Factor | >0.99 @rated voltage | ||||
| Efficiency | 95% | ||||
| Display | 5 inch Color display | ||||
| Dimension(cm) | 42*22*65 | 50*23*70 | 60*27*83 | ||
| Weight | 20KG | 30KG | 44KG | 56KG | 70KG |
| Operating Temperature | -20°C to+50°C | ||||
| Altitude | 2000M | ||||
| IPLEVEL | IP54 | ||||
| Working Relative Humidity |
RH≤95% | ||||
| Input cable length | 0M(Customization Acceptable) | ||||
| Gun cable Length | 5M(Customization Acceptable) | ||||
| Connector type | CCS1 CCS2 CHADEMO GBT | ||||
| Charging protocol | GBT27930/CHADEMO 2.0/DIN 70121/OCPP 1.6(JSON)/ISO 15118 | ||||
Product Advantages
The system integrates key functions including scheduled charging, time-of-use pricing, V2G (Vehicle-to-Grid) interaction, and load balancing, enabling refined operation and management.
It supports scheduled charging and time-of-use pricing, which can flexibly adapt to peak and off-peak electricity prices to optimize revenue. The V2G function expands the space for value-added services, while load balancing ensures grid stability and reduces operational risks. These functions fully meet the needs of various operational scenarios.
About Us
Equipped with 4G network connectivity and dedicated app control, along with a 32-inch high-definition display, this charger not only enables intelligent operation and monitoring of charging stations but also allows the development of additional commercial value such as on-screen advertising. Its stable operation reduces operational costs and drives revenue growth for your business.
