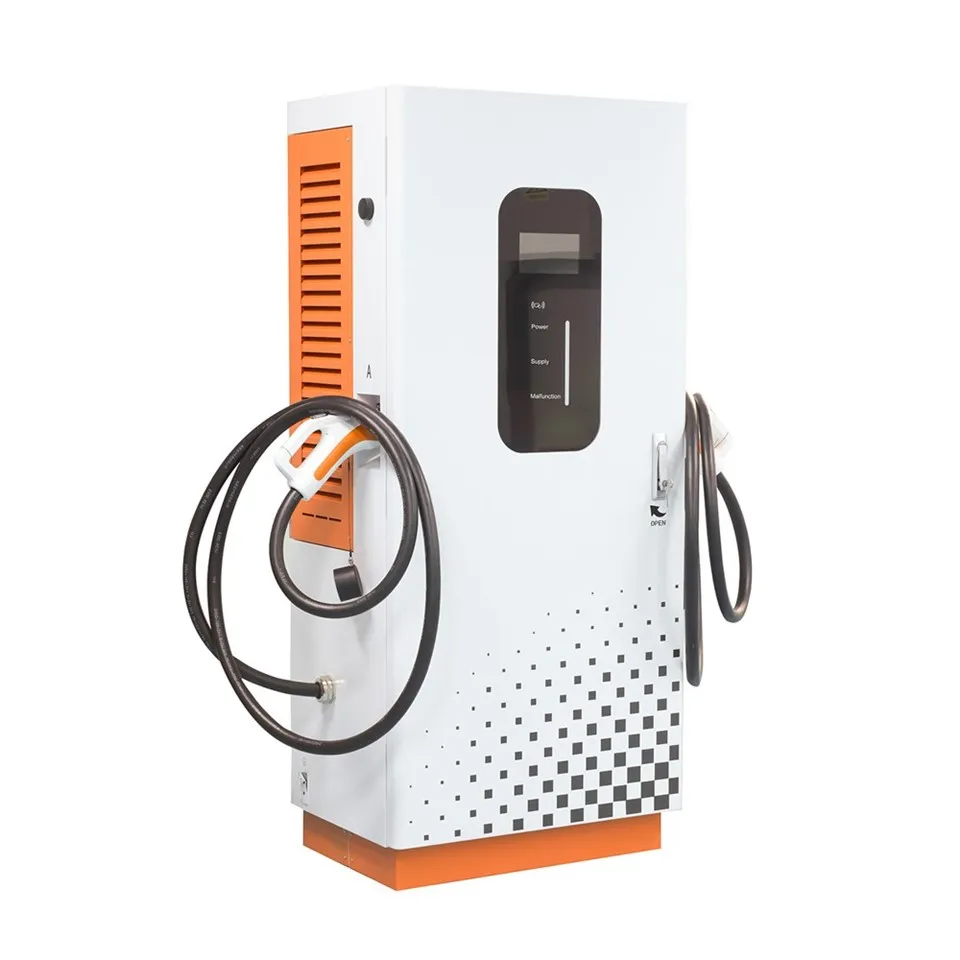

Our EV charging machine offers a multi-power range of 60kW to 160kW, which can flexibly match the operational needs of different scenarios such as supermarket charging stations, logistics park charging points, and highway service area fast-charging stations. It meets your differentiated planning for the power configuration of charging stations.



Main Parameter
| Model | KY-DC 07WD |
KY-DC-15WD | KY-DC 20WD |
KY-DC 30WD |
KY-DC 40WD |
| Output Power | 7KW | 15KW | 20KW | 30KW | 40KW |
| Output Current | 20A | 37A | 60A | 100A | 133A |
| Output Voltage | 200-750V(200-1000V optional) | ||||
| Input.Connection | L+N+PE | 3P+N+PE | |||
| Input Current | 32A | 25A | 32A | 45A | 64A |
| Input voltage | 90-265V | 260-475V | |||
| Frequency | 50/60Hz | ||||
| Power Factor | >0.99 @rated voltage | ||||
| Efficiency | 95% | ||||
| Display | 5 inch Color display | ||||
| Dimension(cm) | 42*22*65 | 50*23*70 | 60*27*83 | ||
| Weight | 20KG | 30KG | 44KG | 56KG | 70KG |
| Operating Temperature | -20°C to+50°C | ||||
| Altitude | 2000M | ||||
| IPLEVEL | IP54 | ||||
| Working Relative Humidity |
RH≤95% | ||||
| Input cable length | 0M(Customization Acceptable) | ||||
| Gun cable Length | 5M(Customization Acceptable) | ||||
| Connector type | CCS1 CCS2 CHADEMO GBT | ||||
| Charging protocol | GBT27930/CHADEMO 2.0/DIN 70121/OCPP 1.6(JSON)/ISO 15118 | ||||

Product Advantages
Our EV charging machine covers an ultra-wide voltage range of 200V to 1000V, compatible with both Class A passenger vehicles and commercial models such as heavy-duty electric trucks. There's no need to purchase separate equipment for different vehicle types, effectively reducing procurement costs.
This charger not only adapts to various application scenarios but also meets the charging needs of all vehicle categories, aligning with market demands and minimizing resource waste in operational processes.
